Galvanized Steel Pipe Rack for a pharmaceutical company
Portfolio Detail
Galvanized Steel Pipe Rack for a pharmaceutical company
Overview:

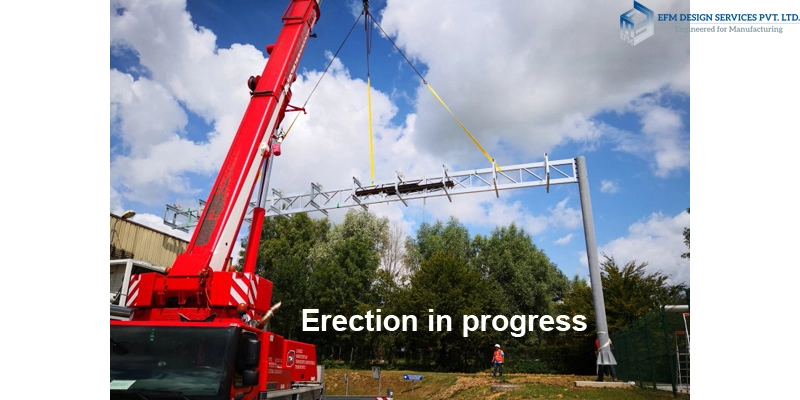

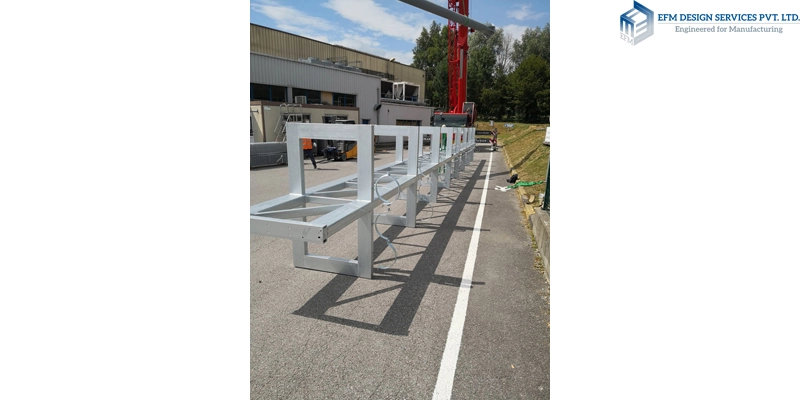

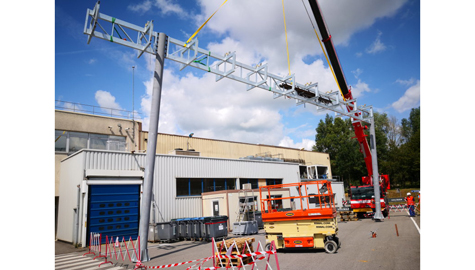

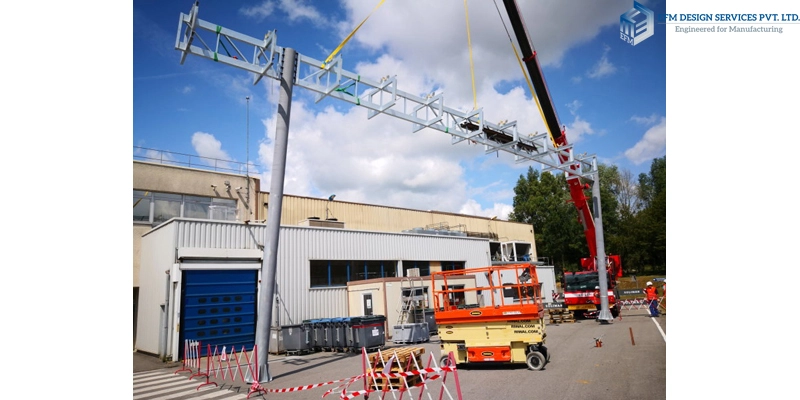

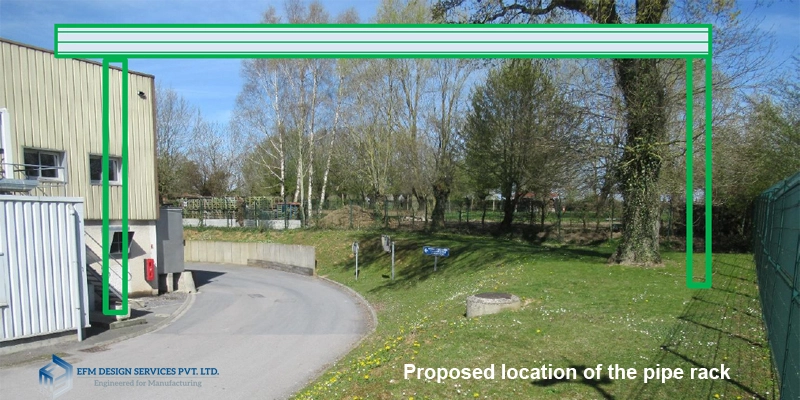

A pharmaceutical company in France installed a new chilled water system at one of its plants. As part of the installation, a pipe rack was required to arrange the utility pipelines and cables between the equipment and a building. The hot-tip galvanized steel rack was subcontracted to our group and was about 20m long, 8.5m high and was fixed to the ground at two points.
Software Used:
Structural analysis and design – STAAD.Pro

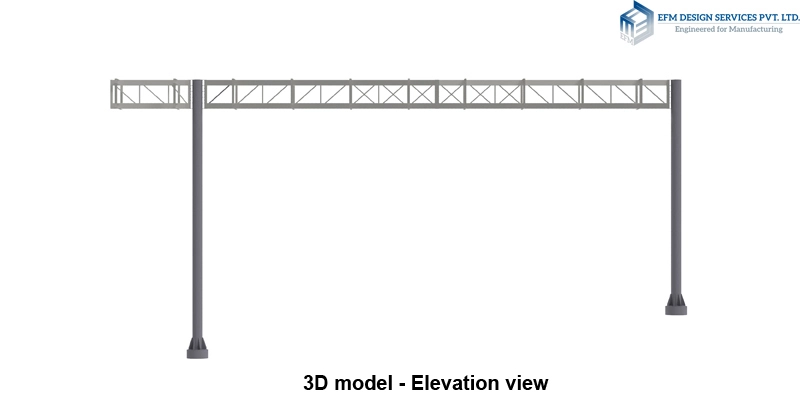

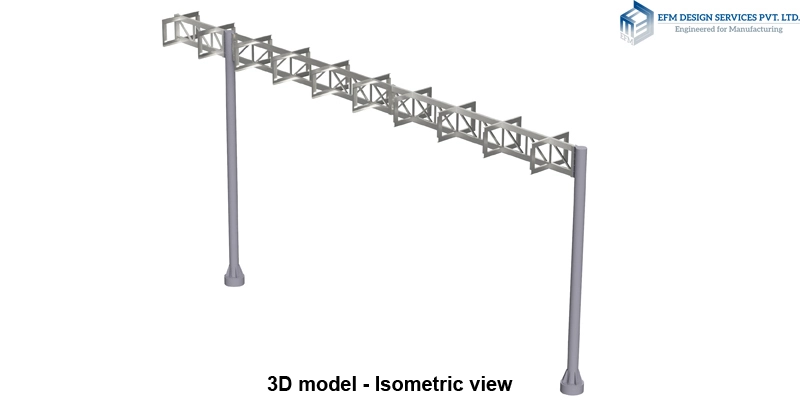

3D modeling – Autodesk Inventor
2D drafting - AutoCAD.
Scope of project:
Design and Engineering
Fabrication
Erection
The design and engineering analysis was carried out by EFM Design Services while the structure was fabricated and erected by our European partner, Greening Services.
